AMMDS 10-44/1 OPTO-COUPLER MODULE 50082
Product may differ from image

AMMDS 10-44/1 OPTO-COUPLER MODULE

IN: 35 VDC - OUT: 35 VDC / 0.2 A

Art.No.: 50082
Alternative product:
526071
Weight: 0.036 kg
Country of origin:  CZ
Model designation:  AMMDS 10-44/1
Find similar Product
Ask question
 Recommend Product
Product comparison

For further Information please Register or Login

Download to the Data Cart Download to Easy-Import-Export

Description

Transistor 0.2 A
24 V DC
with minus plug link
Double terminals on the output side
for rapid switching
CE
UKCA

Header
Material short text AMMDS 10-44/1
Electrical data | Input
Input voltage DC min. 10 V
Input voltage DC max. 35 V
Input voltage OFF DC min. 0 V
Input voltage OFF DC max. 5 V
Input current 10 mA
Electrical data | Output
Voltage drop DC max. 0,5 V
Quiescent current OFF max. 0,3 mA
Switch on delay max. 20 µs
Switch off delay max. 14 µs
Voltage switching DC min. 5 V
Switching voltage DC max. 35 V
Switching current min. 1 mA
Switching current max. 0,2 A
Switching frequency ohmic max. 20.000 Hz
Switching frequency inductive max. 200 Hz
Diagnostics
Status indication LED red
Device protection | Electrical
Rated surge voltage 2,5 kV
Device protection | Media
Flame resistance flame retardant
Mechanical data | Material data
Material housing Plastic
Color housing black
Mechanical data | Mounting data
Height 68 mm
Width 82 mm
Depth 12 mm
Mounting method geschnappt
Suitable for mounting type Mounting rail TH35, (EN 60715), G32
Environmental characteristics | Climatic
Operating temperature min. -20 °C
Operating temperature max. 60 °C

Connection types
Connection type 1 Input
Connection type 2 Output
Connection type 3 Output
Connection type 1
Family construction form terminal
No. of poles 2
Gender female
Connection Screw terminals SK
Connection type 2
Family construction form terminal
No. of poles 2
Gender female
Connection Screw terminals SK
Connection type 3
Family construction form terminal
No. of poles 2
Gender female
Connection Screw terminals SK

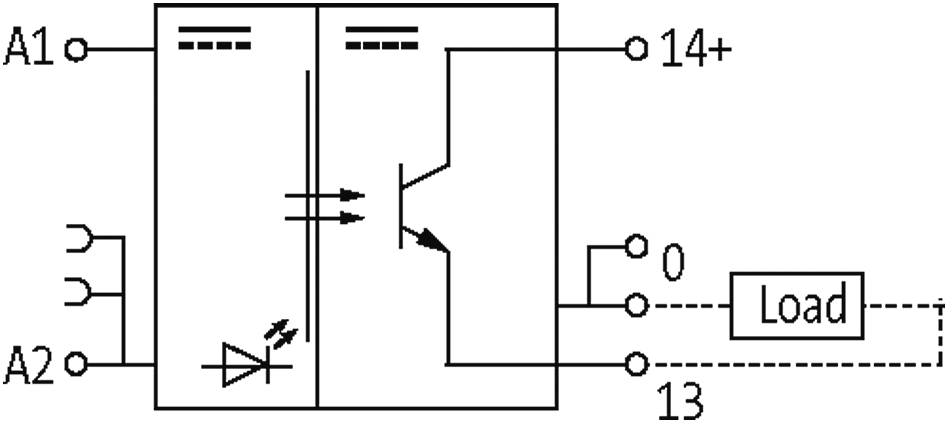

PIN 1 + 14
PIN 2 13

URL Webshop https://shop.murrelektronik.com/50082
GTIN 4048879027977
Scope of delivery Jumper (Art-No. 90960)
ECLASS-6.0 27371604
ECLASS-6.1 27371604
ECLASS-7.0 27371604
ECLASS-7.1 27371604
ECLASS-8.0 27371604
ECLASS-8.1 27371604
ECLASS-9.0 27371604
ECLASS-9.1 27371604
ECLASS-10.0.1 27371604
ECLASS-10.1 27371604
ECLASS-11.0 27371604
ECLASS-11.1 27371604
ECLASS-12.0 27371604
ECLASS-13.0 27371604
ECLASS-14.0 27371604
ETIM-5.0 EC001504
ETIM-6.0 EC001504
ETIM-7.0 EC001504
ETIM-8.0 EC001504
customs tariff number 85414900
EAN 4048879027977
Packaging unit 1


Data Regarding Article:
  • Product-PDF
  • Information: Certificate of conformity Murrelektronik GmbH 21-08-25_(3) RoHS REACh exemption 6c 7cI_DoC_z_a.pdf (04)
  • Information: Certificate of conformity Murrelektronik GmbH 13-08-25_(1) California Prop65 No Warning_DoC_z_a.pdf (01)
  • Information: Certificate of conformity Murrelektronik GmbH 17-08-25_(3) China RoHS 2 25EEP_DoC_z_a.pdf (01)
  • Information: Certificate of conformity UKCA 50082_1514-04.16_uk_z_a.pdf (A)
  • Information: EU declaration of conformity 50082_1514-04.16_ce_z_d.pdf (D)
  • Information: MTTF Report 50082_SN29500(40°C)-BerechnungV1.4_mttf_p_b.pdf (B)
