Cube67 Valve-Interface, I/O Extension Module 56657
3D View Product may differ from image

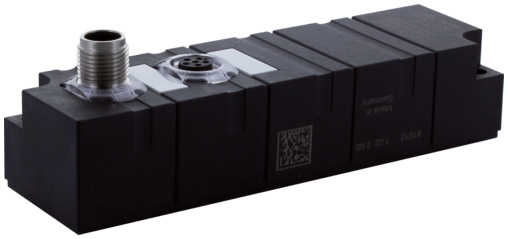

Cube67 Valve-Interface, I/O Extension Module

DO32, MAC Valves, D-Sub HD44F 44 pol.,

Art.No.: 56657
Weight: 0.185 kg
Country of origin:  CZ
Model designation:  Cube67 DO32 E MAC
Find similar Product
Ask question
 Recommend Product
Product comparison

For further Information please Register or Login

Download to the Data Cart Download to Easy-Import-Export

Description

Expansion module
Cube67 DO32 E - Valve
Multipole plug (0.5 A)
MAC - SUB-D44
Connection cables are in the online shop under "Connection Technology".
Housing fully potted.
CE
cULus
UKCA

Connect Product

System cableShow all

Header
Material short text Cube67 DO32 E MAC
Electrical data | Supply
Norm operating voltage IEC/EN 61131-2
Total current US max. 4 A
Operating voltage UA DC 24 V
Total current UA max. 4 A
Current consumption max. 50 mA
Electrical data | Output
Output current per pin max. 0,5 A
Overload resistant Yes
Short-circuit protected Yes
Diagnostics
Actuator warning per channel via BUS
Short circuit diagnosis Yes
Overload diagnosis Yes
Diagnostic No voltage, Under voltage
Diagnostic via BUS per module and channel
Diagnostic via LED per module
LED display Ethernet connection/data traffic
Device protection | Electrical
Degree of protection (EN IEC 60529) IP67
Mechanical data | Mounting data
Height 124 mm
Width 36 mm
Depth 39,5 mm
Suitable for mounting type 2-hole screw mounting
Environmental characteristics | Climatic
Operating temperature min. 0 °C
Operating temperature max. 55 °C
Ambient temperature (storage, transport) -20 °C

Connection types
Connection type 1 Bus Out
Connection type 2 Data
Connection type 1
Family construction form M12
No. of poles 6
Coding A
Gender male
Color contact carrier black
PIN 1 24 V DC (UA)
PIN 2 24 V DC (US)
PIN 3 0 V
PIN 4 Bus internal
PIN 5 Bus internal
PIN 6 0 V
Connection type 2
Family construction form D-Sub
No. of poles 44
Gender female
PIN 1 Out 0
PIN 2 Out 1
PIN 3 Out 2
PIN 4 Out 3
PIN 5 Out 4
PIN 6 Out 5
PIN 7 Out 6
PIN 8 Out 7
PIN 9 Out 8
PIN 10 Out 9
PIN 11 Out 10
PIN 12 Out 11
PIN 13 Out 12
PIN 14 Out 13
PIN 15 Out 14
PIN 16 Out 15
PIN 17 Out 16
PIN 18 Out 17
PIN 19 Out 18
PIN 20 Out 19
PIN 21 Out 20
PIN 22 Out 21
PIN 23 Out 22
PIN 24 Out 23
PIN 25 Out 24
PIN 26 Out 25
PIN 27 Out 26
PIN 28 Out 27
PIN 29 Out 28
PIN 30 Out 29
PIN 31 Out 30
PIN 32 Out 31
PIN 33 Sens
PIN 34 0 V
PIN 35 0 V
PIN 36 0 V
PIN 37 0 V
PIN 38 0 V
PIN 39 0 V
PIN 40 0 V
PIN 41 0 V
PIN 42 0 V
PIN 43 FE
PIN 44 FE

URL Webshop https://shop.murrelektronik.com/56657
GTIN 4048879048361
ECLASS-6.0 27242604
ECLASS-6.1 27242604
ECLASS-7.0 27242604
ECLASS-7.1 27242604
ECLASS-8.0 27242604
ECLASS-8.1 27242604
ECLASS-9.0 27242604
ECLASS-9.1 27242604
ECLASS-10.0.1 27242604
ECLASS-10.1 27242604
ECLASS-11.0 27242604
ECLASS-11.1 27242604
ECLASS-12.0 27242604
ECLASS-13.0 27242604
ECLASS-14.0 27242604
ETIM-5.0 EC001599
ETIM-6.0 EC001599
ETIM-7.0 EC001599
ETIM-8.0 EC001599
customs tariff number 85389099
EAN 4048879048361
Packaging unit 1


Data Regarding Article:
  • Product-PDF
  • Approval: UL Listed CA 56657_E201820_NRAQ7_ulc_z_a.pdf (A)
  • Approval: UL Listed US 56657_E201820-NRAQ_ul_z_b.pdf (B)
  • Construction files: DXF 56653_dxf_x_a.zip (A)
  • Construction files: P8 56657_p8_2_50.zip (50)
  • Construction files: STP 56653_stp_x_a.zip (A)
  • Document: Operating instructions 56657_ina_6_21.pdf (21)
  • Document: User manual 56971_hdb_x_37.zip (37)
  • Document: User manual 56970_hdb_x_25.zip (25)
  • Document: User manual 56975_hdb_x_13.zip (13)
  • Information: Certificate of conformity Murrelektronik GmbH 24-08-25_(2) RoHS REACh exemption 7cI_DoC_z_a.pdf (02)
  • Information: Certificate of conformity Murrelektronik GmbH 12-08-25_(10) REACH SVHC CAS No 115-86-6_DoC_z_a.pdf (01)
  • Information: Certificate of conformity Murrelektronik GmbH 16-08-25_(2) China RoHS 2 20EEP_DoC_z_a.pdf (01)
  • Information: Certificate of conformity Murrelektronik GmbH 14-08-25_(6) California Prop65 Ni surface_DoC_z_a.pdf (01)
  • Information: Certificate of conformity UKCA 56657_979-04.16_uk_z_a.pdf (A)
  • Information: EU declaration of conformity 56657_979-04.16_ce_z_b.pdf (B)
  • Information: MTTF Report 56657_SN29500(40°C)-Berechnung_mttf_p_a.pdf (A)
