MASI65 VALVE PLUG PLUG 55680
Product may differ from image

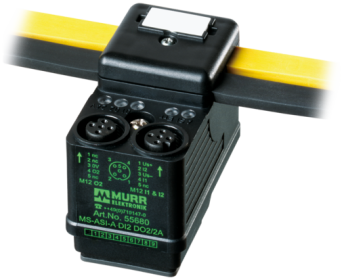

MASI65 VALVE PLUG PLUG

2 digital inputs, 2 digital outputs

Art.No.: 55680
Weight: 0.040 kg
Country of origin:  CZ
Model designation:  MASI65 DI2/0,2A DO2/2A VA
Find similar Product
Ask question
 Recommend Product
Product comparison

For further Information please Register or Login

Download to the Data Cart Download to Easy-Import-Export

Description

Digital inputs/outputs
DI2 - 0.2 A (M12)
DO2 - 2 A (Form A/M12)
24 V DC external (18...30.2 V DC) EN 61131-2, connection via black AS-Interface profile cable
ASI
CE
cURus
UKCA

Connect Product

Data cableShow all
Sensor-actuator cableShow all

Header
Material short text MASI65 DI2/0,2A DO2/2A VA
Electrical data | Supply
Total current max. 2 A
Bus voltage AS-Interface DC min. 26,5 V
Bus voltage AS-Interface DC max. 31,6 V
Current consumption AS-i port max. 250 mA
Electrical data | Input
Current carrying capacity max. 0,2 A
Short-circuit protected Yes
Overload resistant Yes
Type input for 3-wire sensors or mechanical switches, PNP
Electrical data | Output
Output current per pin max. 2 A
Overload resistant Yes
Short-circuit protected Yes
Industrial communication | Bus data
Address setting type Addressing socket
Address range min. 1
Address range max. 31
Industrial communication | AS-Interface
Profile (IO.ID.ID2) S-3.F.E
Diagnostics
Diagnostic No voltage
Diagnostic via LED per module
LED display Ethernet connection/data traffic
Installation
Contact distance 18 mm
Device protection | Electrical
Degree of protection (EN IEC 60529) IP67
Mechanical data | Mounting data
Height 50 mm
Width 33 mm
Depth 66 mm
Environmental characteristics | Climatic
Operating temperature min. -20 °C
Operating temperature max. 70 °C
Ambient temperature (storage, transport) -20 °C

Connection types
Connection type 1 Ausgang O 1
Connection type 2 Ausgang O 2
Connection type 3 Eingänge I 1 & I 2
Connection type 1
Family construction form MSUD A
No. of poles 2
Gender female
Color contact carrier black
PIN 1 0 V
PIN 2 DO 1
Connection type 2
Family construction form M12
No. of poles 5
Coding A
Gender female
Color contact carrier black
PIN 1 n.c.
PIN 2 n.c.
PIN 3 0 V
PIN 4 DO 2
PIN 5 n.c.
Connection type 3
Family construction form M12
No. of poles 5
Coding A
Gender female
Color contact carrier black
PIN 1 Usens +
PIN 2 DI 2
PIN 3 Usens -
PIN 4 DI 1
PIN 5 n.c.

URL Webshop https://shop.murrelektronik.com/55680
GTIN 4048879050180
ECLASS-6.0 27242604
ECLASS-6.1 27242604
ECLASS-7.0 27242604
ECLASS-7.1 27242604
ECLASS-8.0 27242604
ECLASS-8.1 27242604
ECLASS-9.0 27242604
ECLASS-9.1 27242604
ECLASS-10.0.1 27242604
ECLASS-10.1 27242604
ECLASS-11.0 27242604
ECLASS-11.1 27242604
ECLASS-12.0 27242604
ECLASS-13.0 27242604
ECLASS-14.0 27242604
ETIM-5.0 EC001599
ETIM-6.0 EC001599
ETIM-7.0 EC001599
ETIM-8.0 EC001599
customs tariff number 85176200
EAN 4048879050180
Packaging unit 1


Data Regarding Article:
  • Product-PDF
  • Approval: UL Registered CA 55680_E208739-NMTR8_urc_z_c.pdf (C)
  • Approval: UL Registered US 55680_E205946-NMTR2_ur_z_c.pdf (C)
  • Certificate: ASI  55680_pz04-32602_asi_z_d.pdf (D)
  • Construction files: P8 55680_p8_2_30.zip (30)
  • Document: Operating instructions 55680_ina_4_22.pdf (22)
  • Information: Certificate of conformity Murrelektronik GmbH 24-08-25_(2) RoHS REACh exemption 7cI_DoC_z_a.pdf (02)
  • Information: Certificate of conformity Murrelektronik GmbH 13-08-25_(1) California Prop65 No Warning_DoC_z_a.pdf (01)
  • Information: Certificate of conformity Murrelektronik GmbH 16-08-25_(2) China RoHS 2 20EEP_DoC_z_a.pdf (01)
  • Information: Certificate of conformity UKCA 55680_5021-04.16_uk_z_a.pdf (A)
  • Information: EU declaration of conformity 55680_5021-04.16_ce_z_b.pdf (B)
  • Information: MTTF Report 55680_SN29500(40°C)-BerechnungV1.4_mttf_p_a.pdf (A)
