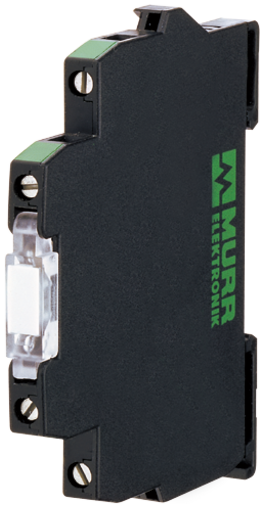

INDUCTIVCOUPLER 24V 5A 30KHZ

Art.No.:	52700
Alternative product:	6652700
Weight:	0.026 kg
Country of origin:	CZ
Model designation:	Induktivkoppler 24V 5A 30kHz

Find similar Product

Ask question

Recommend Product

Product comparison

For further Information please Register or Login

Quantity

Download to the Data Cart Download to Easy-Import-Export

Description

Inductive switching signal transmission
Wear-free switching
No operating voltage at output
Switching frequency: max. 30 kHz
Switching current up to 5 A
Screw terminals

Technical Data

Electrical data | Input

Input voltage DC	24 V
Input voltage DC min.	15 V
Input voltage DC max.	30 V
Input voltage OFF DC min.	0 V
Input voltage OFF DC max.	5 V
Input current DC max.	32 mA

Electrical data | Output

Quiescent current OFF max.	0,025 mA
Switching frequency inductive max.	3000 Hz
Switching frequency ohmic max.	30000 Hz
Switching current min.	1 mA
Switching current max.	5 A

Diagnostics

Status indication LED	yellow

Device protection | Electrical

Degree of protection (EN IEC 60529)	IP20
Rated surge voltage	1,5 kV

Device protection | Media

Flame resistance	flame retardant

Mechanical data | Material data

Material housing	Plastic
Color housing	black

Mechanical data | Mounting data

Mounting method	geschnappt
Suitable for mounting type	mounting rail, (EN 60715)
Height	78 mm
Width	6,2 mm
Depth	71 mm

Environmental characteristics | Climatic

Operating temperature min.	-20 °C
Operating temperature max.	60 °C
Storage temperature min.	-40 °C
Storage temperature max.	80 °C

Commercial data

ECLASS-6.0	27371604
ECLASS-6.1	27379090
ECLASS-7.0	27379090
ECLASS-8.0	27379090
ECLASS-9.0	27379090
ECLASS-10.1	27379090
ECLASS-11.1	27379090
ECLASS-12.0	27379090
ETIM-5.0	EC001504
customs tariff number	85365080
customs tariff number	85365080
GTIN	4048879329538
GTIN	4048879329538
Packaging unit	1
Packaging unit	1

Downloads

Data Regarding Article:

Product-PDF
Approval: UL Registered CA 52700_E140415-NKCR8_urc_z_b.pdf (B)
Approval: UL Registered US 52700_E140415-NKCR2_ur_z_b.pdf (B)
Construction files: P8 52700_p8_2_10.zip (10)
Document: Installation guide 52700_ina_x_11.zip (11)
Information: Certificate of conformity Murrelektronik GmbH 16-12-23_(3) RoHS REACh exception 6c 7cI_DoC_z_a.pdf (04)
Information: Certificate of conformity Murrelektronik GmbH 23-12-23_(1) California Prop65 No Warning_DoC_z_a.pdf (01)
Information: Certificate of conformity Murrelektronik GmbH 12-12-23_(3) China RoHS 2 25EEP_DoC_z_a.pdf (01)
Information: Certificate of conformity UKCA 52700_1547-04.16_uk_z_a.pdf (A)
Information: EU declaration of conformity 52700_1547-04.16_ce_z_b.pdf (B)
Information: MTTF Report 52700_SN29500(40°C)-BerechnungV1.4_mttf_p_a.pdf (A)
