M12 male 0° / M12 female 90° A-cod. 7000-40141-4880100

Product may differ from image

Flange Connectors

I/O-Systems

M12 male 0° / M12 female 90° A-cod.

PUR 5x0.34 or UL/CSA+robot+drag ch. 1m

Art.No.:	7000-40141-4880100
Weight:	0.095 kg
Country of origin:	CN
Model designation:	MSDL0-A-U488_1.0-DS

Find similar Product

Ask question

Recommend Product

Product comparison

For further Information please Register or Login

Quantity

Download to the Data Cart Download to Easy-Import-Export

Description

Advantages of our connectors:

Our connectors are versatile and specially optimised for industrial environments. All connectors are 100% tested during the manufacturing process to ensure the highest quality and reliability.

The contacts are gold-plated, which ensures optimum conductivity. Thanks to the high degree of protection, the connectors are ideal for demanding industrial environments. They are also vibration-resistant - this is ensured by the union nut with vibration protection.

Our connectors are resistant to oils and cooling lubricants, but resistance to aggressive media should be tested for each specific application. Different cable lengths available on request

If you are missing technical information? Please feel free to use our dictionary to find more technical details.

Product details:
Male straight – female 90°

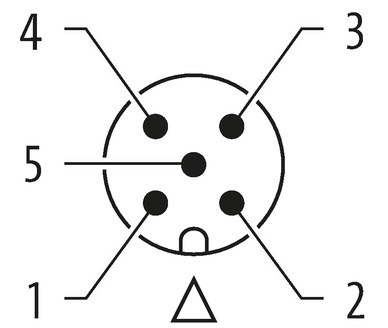

M12 – M12, 5-pole
Art-No. 7005 - M12 Lite - (plastic hexagonal screw) on request
Zinc die casting, save-cover coated
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.

Technical Data

Cable length 1 m

Side 1

Tightening torque 0,6 Nm

Mounting method inserted, screwed

Family construction form M12

Material PUR

Width across flats SW13

Side 2

Tightening torque 0,6 Nm

Mounting method inserted, screwed

Family construction form M12

Material PUR

Width across flats SW13

Electrical data | Supply

Operating voltage AC max. 125 V

Operating voltage DC max. 125 V

Installation | Connection

Mounting set M12 x 1

Device protection | Electrical

Pollution Degree 3

Rated surge voltage 1,5 kV

Material group (IEC 60664-1) I

Mechanical data | Material data

Coating of fitting nickel plated

Material screw connection Zinc die-casting

Environmental characteristics | Climatic

Operating temperature min. -25 °C

Operating temperature max. 85 °C

Additional condition temperature range depending on cable quality

Important installation notes

Note on strain relief Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.

Note on bending radius Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.

Cable data

Cable

wire arrangement brown, black, blue, white, gray

General data | Cable

Cable identification 488

Cable Type 5

Jacket Color orange

Type of Certificate cURus

Structure | Cable

Amount stranding 1

Stranding 5 wires around Core filler twisted

Filler yes

wire arrangement brown, black, blue, white, gray

Mechanical data | Cable

Cable weigth 71,5 g/m

Material jacket PUR

Shore hardness jacket 58 ± 3 Shore D

Freedom from ingredients (jacket) lead-free, cadmium-free, CFC-free, halogen-free, silicone-free

Outer-diameter (jacket) 6,5 mm

Tolerance outer diameter (sheath) ± 5 %

Material wire insulation PP

Amount wires 5

Outer diameter insulation 1,25 mm

Outer diameter tolerance core insulation ± 5 %

Shore hardness wire insulation 74 ± 3 Shore D

Ingredient freeness wire insulation lead-free, cadmium-free, CFC-free, halogen-free, silicone-free

Amount strands (wire) 42

Diameter of single wires 0,1 mm

Conductor crosssection (wire) 0,34 mm²

Material conductor wire Stranded copper wire, bare

Conductor type (wire) strand class 6

Electrical data | Cable

Nominal voltage AC max. 300 V

Current load capacity (standard) to DIN VDE 0298-4

Current load capacity min. wire 4,5 A

Electrical resistance line constant wire 60 Ω/km @ 20 °C

AC withstand voltage (wire - wire) 2,5 kV @ 60 s

Power frequency withstand voltage (wire - jacket) 2,5 kV @ 60 s

Temperature range | Cable

Min. operating temperature (static) -40 °C

Max. operating temperature (fixed) 80 °C / 90 °C @ 10000 h Operation

Operating temperature min. (dynamic) -25 °C

Operating temperature max. (dynamic) 80 °C / 90 °C @ 10000 h Operation

Resistances | Cable

Flame resistance UL 1581 § 1100 FT2 | UL 1581 § 1090 | IEC 60332-2-2

chemical resistance Good, application-related testing

Gasoline resistance Good, application-related testing

Oil resistance DIN EN 60811-404 | Good, application-related testing

Welding spark resistance Good, application-related testing

Installation | Cable

Bending radius (fixed) 5 x Outer diameter

Bending radius (dynamic) 10 x Outer diameter

No. of bending cycles (C-track) 10 Mio. @ 25 °C

Traversing distance (C-track) 5 m @ 25 °C | horizontal

Travel speed (C-track) 3,3 m/s @ 25 °C

No. of torsion cycles 1 Mio.

Torsion stress ± 360 °/m

Torsion speed 35 cycles/min

Commercial data

ECLASS-6.0 27279218

ECLASS-6.1 27279218

ECLASS-7.0 27279218

ECLASS-8.0 27279218

ECLASS-9.0 27060311

ECLASS-10.1 27060311

ECLASS-11.1 27060311

ECLASS-12.0 27060311

ETIM-5.0 EC001855

ETIM-6.0 EC001855

ETIM-7.0 EC001855

ETIM-8.0 EC001855

customs tariff number 85444290

customs tariff number 85444290

EAN 4048879792684

EAN 4048879792684

Packaging unit 1

Packaging unit 1

Downloads

Please accept our terms of use of website and website downloads.
I agree with the Privacy Policy and Legal Notice

Data Regarding Article:

Product-PDF

Approval: EAC CON-8544429009_ЕАЭС RU С-DE.АБ53.В.03598-2027.02.14_eac_z_b.pdf (B)

Document: ATEX 7000-18001_atx_2_l.pdf (L)

Information: Certificate of conformity Murrelektronik GmbH 21-12-23_(5) RoHS REACh no exception_DoC_z_a.pdf (02)

Information: Certificate of conformity Murrelektronik GmbH 10-12-23_(1) China RoHS 2 e_DoC_z_a.pdf (01)

Information: Certificate of conformity Murrelektronik GmbH 22-12-23_(6) California Prop65 Ni surface_DoC_z_a.pdf (01)

Information: Certificate of conformity UKCA 7000-40001_01-08.19_uk_z_a.pdf (A)

Information: EU declaration of conformity 7000-40001_01-08.19_ce_z_b.pdf (B)
