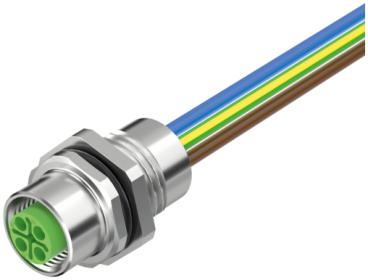

M12 Power female recept. S-cod. front incl. nut
PUR-wires 4x1.5 1m
| Art.No.: | 7000-P6292-9450100 |
| Weight: | 0.151 kg |
| Country of origin: | DE |
| Model designation: | MSWBSFV-T945_1.0 |
Description
Power
Flange female
M12, 4-pole
S-coded
Front mounting
with multi-strand wire
Hexagon nut M16x1.5 (SW19) for flange connector included in the delivery package
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
Technical Data
| Cable length | 1 m |
|---|
Side 1
| Tightening torque | 0,6 Nm |
|---|---|
| Coating contact | gold plated |
| Family construction form | M12P |
| Thread | M12 x 1 |
| Coding | S |
| Material contact | Copper alloy |
| No. of poles | 4 |
| Width across flats | SW17 |
| Degree of protection (EN IEC 60529) | IP65, IP67 |
Electrical data | Supply
| Operating voltage AC max. | 600 V |
|---|---|
| Current operating per contact max. | 12 A |
Diagnostics
| Status indication LED | no |
|---|
Installation | Connection
| Mounting set | M16 x 1.5 |
|---|---|
| Width across flats | SW19 |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP65, IP67 |
|---|---|
| Protection NEMA | 3, 4, 6P |
| Additional condition protection degree | screwed, mounted |
| Pollution Degree | 3 |
| Rated surge voltage | 6 kV |
| Material group (IEC 60664-1) | I |
Mechanical data
| Contour for corrugated hose | without |
|---|
Mechanical data | Material data
| Material housing | Brass |
|---|---|
| Coating housing | nickel plated |
| Coating locking | nickel plated |
| Material gasket | FKM |
| Locking material | Brass |
Mechanical data | Mounting data
| Mounting method | inserted, screwed |
|---|
Environmental characteristics | Climatic
| Operating temperature min. | -25 °C |
|---|---|
| Operating temperature max. | 85 °C |
| Additional condition temperature range | depending on cable quality |
Important installation notes
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
|---|---|
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
Conformity
| Product standard | IEC 61076-2-111 |
|---|
Approvals
| UL 50E | yes |
|---|
Cable data
Cable
| wire arrangement | brown, white, blue, green-yellow |
|---|
General data | Cable
| Cable identification | 945 |
|---|
Structure | Cable
| wire arrangement | brown, white, blue, green-yellow |
|---|
Mechanical data | Cable
| Cable weigth | 93,5 g/m |
|---|---|
| Material wire insulation | PUR |
| Amount wires | 4 |
| Outer diameter insulation | 2,4 mm |
| Outer diameter tolerance core insulation | ± 5 % |
| Ingredient freeness wire insulation | lead-free, CFC-free, halogen-free |
| Resistances wire insulation | hydrolysis-resistant, microbe-resistant |
| Amount strands (wire) | 30 |
| Diameter of single wires | 0,25 mm |
| Conductor crosssection (wire) | 1,5 mm² |
| Material conductor wire | copper stranded wire, tinned |
| Conductor type (wire) | Strand class 5 |
Electrical data | Cable
| Nominal voltage AC max. | 900 V |
|---|---|
| Electrical resistance line constant wire | 13,3 Ω/km @ 20 °C |
| AC withstand voltage (wire - wire) | 3,31 kV @ 60 s |
| Isolation resistance | 20 MΩ × km |
Temperature range | Cable
| Min. operating temperature (static) | -40 °C |
|---|---|
| Max. operating temperature (fixed) | 90 °C |
| Operating temperature min. (dynamic) | -25 °C |
| Operating temperature max. (dynamic) | 90 °C |
Resistances | Cable
| Flame resistance | IEC 60332-2-2 | UL 1581 § 1090 | UL 1581 § 1100 FT2 |
|---|---|
| chemical resistance | Good, application-related testing |
| Gasoline resistance | Good, application-related testing |
| Oil resistance | DIN EN 60811-404 | Good, application-related testing |
Commercial data
| ECLASS-6.0 | 27279221 |
|---|---|
| ECLASS-6.1 | 27279220 |
| ECLASS-7.0 | 27440103 |
| ECLASS-8.0 | 27440103 |
| ECLASS-9.0 | 27440103 |
| ECLASS-10.1 | 27440103 |
| ECLASS-11.1 | 27440103 |
| ECLASS-12.0 | 27440103 |
| ETIM-5.0 | EC002061 |
| customs tariff number | 85444290 |
| customs tariff number | 85444290 |
| EAN | 4048879909013 |
| EAN | 4048879909013 |
| Packaging unit | 1 |
| Packaging unit | 1 |
