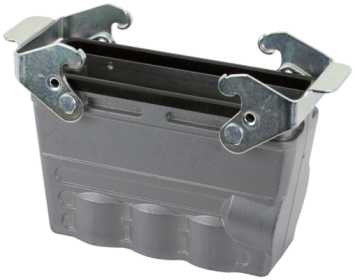

B24 Coupling h., high profile, IP65
Double locking lever m., top entry M32
| Art.No.: | 70MH-GKGHQ-B01D000 |
| Alternative product: | |
| Weight: | 0.3 kg |
| Country of origin: | CZ |
| Model designation: | MSMH-GK-B24H-QVMB-geradeM32-IP65-SDN |
Description
B24
Coupling housing (high)
Double locking lever
IP65
Technical data will be only guaranteed with Murrelektronik components.
Coupling housing (high)
Double locking lever
IP65
Technical data will be only guaranteed with Murrelektronik components.
Technical Data
Installation
| Cable outlet | straight |
|---|
Installation | Connection
| Mounting set | M32 |
|---|---|
| Mating cycles min. | 500 |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP65 |
|---|---|
| Additional condition protection degree | inserted, locked, with screw connection |
Mechanical data
| Housing type | Coupling housing |
|---|
Mechanical data | Material data
| Material housing | Aluminum die casting |
|---|---|
| Coating housing | powder-coated |
| Coating locking | galvanized |
| Material gasket | NBR |
| Locking material | Steel |
Mechanical data | Mounting data
| Size | B24 |
|---|---|
| Height | 78,6 mm |
| Width | 43 mm |
| Depth | 161 mm |
| Looking techniques | Double locking lever |
Environmental characteristics | Climatic
| Operating temperature min. | -40 °C |
|---|---|
| Operating temperature max. | 100 °C |
| Climatic category (EN IEC 60068-1) | 40/100/21 |
Commercial data
| ECLASS-6.0 | 27143424 |
|---|---|
| ECLASS-6.1 | 27261203 |
| ECLASS-7.0 | 27440202 |
| ECLASS-8.0 | 27440202 |
| ECLASS-9.0 | 27440202 |
| ECLASS-10.1 | 27440202 |
| ECLASS-11.1 | 27440202 |
| ECLASS-12.0 | 27440202 |
| ETIM-5.0 | EC000437 |
| customs tariff number | 85389099 |
| customs tariff number | 85389099 |
| EAN | 4048879646819 |
| EAN | 4048879646819 |
| Packaging unit | 1 |
| Packaging unit | 1 |
