Mini (7/8) 3 pole, Male (Ext.) Straight/Female Straight,
PUR, UL/CSA, 3x16AWG, black, 20m
| Art.No.: | 7700-A3A01-UMB2000 |
| Weight: | 2.129 kg |
| Country of origin: | DE |
| Model designation: | MSCAL0-CB-UUMB_20.0 |
Description
Advantages of our connectors:
Our connectors are versatile and specially optimised for industrial environments. All connectors are 100% tested during the manufacturing process to ensure the highest quality and reliability.
The contacts are gold-plated, which ensures optimum conductivity. Thanks to the high degree of protection, the connectors are ideal for demanding industrial environments. They are also vibration-resistant - this is ensured by the union nut with vibration protection. Our connectors are resistant to oils and cooling lubricants, but resistance to aggressive media should be tested for each specific application. Different cable lengths available on request If you are missing technical information? Please feel free to use our dictionary to find more technical details. Product details:Male straight – female straight
7/8" – 7/8", 3-pole
Power cable
USA
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Technical Data
| Cable length | 20 m |
|---|
Side 1
| Tightening torque | 1,5 Nm |
|---|---|
| Mounting method | inserted, screwed |
| Family construction form | 7/8" |
| Thread | 7/8" |
| suitable for corrugated tube (internal Ø) | 17,8 mm |
| Gender | male |
| Cable outlet | straight |

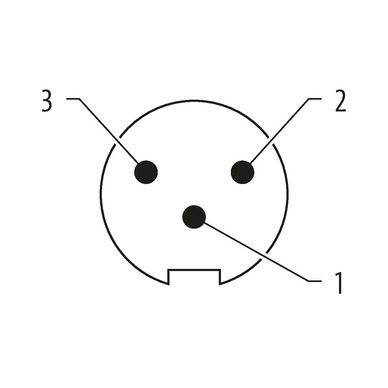

| No. of poles | 3 |
| Width across flats | SW24 |
| Degree of protection (EN IEC 60529) | IP68 |
Side 2
| Tightening torque | 1,5 Nm |
|---|---|
| Mounting method | inserted, screwed |
| Family construction form | 7/8" |
| Thread | 7/8" |
| Gender | female |
| suitable for corrugated tube (internal Ø) | 17,8 mm |
| Cable outlet | straight |
| No. of poles | 3 |
| Width across flats | SW24 |
| Degree of protection (EN IEC 60529) | IP68 |
Electrical data | Supply
| Operating voltage AC max. | 600 V |
|---|---|
| Operating voltage DC max. | 600 V |
| Current operating per contact max. | 12 A |
Device protection | Electrical
| Degree of protection (EN IEC 60529) | IP68 |
|---|---|
| Additional condition protection degree | inserted, screwed |
Mechanical data | Material data
| Material housing | PUR |
|---|---|
| Coating locking | Nickeled |
| Locking material | Zinc die-casting |
Mechanical data | Mounting data
| Mounting method | inserted, screwed, Shaking protection |
|---|
Environmental characteristics | Climatic
| Operating temperature min. | -25 °C |
|---|---|
| Operating temperature max. | 80 °C |
| Additional condition temperature range | depending on cable quality |
Important installation notes
| Note on strain relief | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
|---|---|
| Note on bending radius | Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
Cable data
Cable
| wire arrangement | brown, blue, green-yellow |
|---|
General data | Cable
| Cable identification | UMB |
|---|---|
| Jacket Color | black |
Structure | Cable
| wire arrangement | brown, blue, green-yellow |
|---|
Mechanical data | Cable
| Material jacket | PUR |
|---|---|
| Outer-diameter (jacket) | 7,4 mm |
| Tolerance outer diameter (sheath) | ± 5 % |
| Material wire insulation | TPM |
| Amount wires | 3 |
| Conductor crosssection (wire) | 1,5 mm² |
Temperature range | Cable
| Min. operating temperature (static) | -40 °C |
|---|---|
| Max. operating temperature (fixed) | 80 °C |
| Operating temperature min. (dynamic) | -20 °C |
| Operating temperature max. (dynamic) | 80 °C |
Resistances | Cable
| Flame resistance | IEC 60332-2-2 | UL 1581 § 1090 | UL 1581 § 1100 FT2 |
|---|---|
| chemical resistance | Good, application-related testing |
| Gasoline resistance | Good, application-related testing |
| Oil resistance | Good, application-related testing | DIN EN 60811-404 |
Installation | Cable
| Bending radius (fixed) | 7,5 x Outer diameter |
|---|---|
| Bending radius (dynamic) | 10 x Outer diameter |
| No. of bending cycles (C-track) | 5 Mio. |
Commercial data
| ECLASS-6.0 | 27279218 |
|---|---|
| ECLASS-6.1 | 27279218 |
| ECLASS-7.0 | 27279218 |
| ECLASS-8.0 | 27279218 |
| ECLASS-9.0 | 27060327 |
| ECLASS-10.1 | 27060311 |
| ECLASS-11.1 | 27060311 |
| ECLASS-12.0 | 27060327 |
| ETIM-5.0 | EC001855 |
| customs tariff number | 85444290 |
| customs tariff number | 85444290 |
| customs tariff number | 85444290 |
| EAN | 4048879640350 |
| EAN | 4048879640350 |
| EAN | 4048879640350 |
| Packaging unit | 1 |
| Packaging unit | 1 |
| Packaging unit | 1 |
