M23 female 90° with cable  7000-23151-3621000
加载中… …
3D 模型 产品可能与图示有所不同

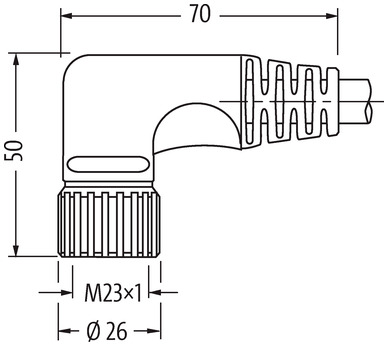

M23 female 90° with cable

PUR 8x0.34+3x0.75 gy drag ch. 10m

产品货号: 7000-23151-3621000
重量: 1.413 千克
原产地:  DE
型号名称:  MS23SNDD12-001_362_10.0

了解更多信息,请注册登录

下载至数据车 下载至Easy-Import-Export

描述


Advantages of our connectors:

Our connectors are versatile and specially optimised for industrial environments. All connectors are 100% tested during the manufacturing process to ensure the highest quality and reliability.

The contacts are gold-plated, which ensures optimum conductivity. Thanks to the high degree of protection, the connectors are ideal for demanding industrial environments. They are also vibration-resistant - this is ensured by the union nut with vibration protection.

Our connectors are resistant to oils and cooling lubricants, but resistance to aggressive media should be tested for each specific application. Different cable lengths available on request

If you are missing technical information? Please feel free to use our dictionary to find more technical details.

Product details:
母头 90°
M23, 12芯
使用11芯
用于8路分线盒, 4芯
更多电缆长度可按需求订制.
塑料外壳, 有较好的防油防化学腐蚀性能
耐化学腐蚀性能需相对相关应用进行测试. 更多信息需单独获取.

电缆长度 10 m
紧固扭矩 2 Nm
安装方式 插入, 用螺丝拧紧
Family construction form M23
螺纹 M23 x 1
材料 PUR
扳手开口宽度 SW27
防护类型(EN IEC 60529) IP65, IP67
电气数据 | 供电
最大工作电压 AC 125 V
最大工作电压 DC 125 V
每个触点的最大工作电流 7,5 A
安装 | 连接
固定装置 M23 x 1
设备保护 | 电动
防护类型附加条件 插入, 用螺丝拧紧
机械数据 | 材料数据
锁紧装置的涂层 nickel plated
螺栓连接涂层 nickel plated
Locking material 黄铜
Material screw connection 黄铜
机械数据 | 安装日期
安装方式 插入, 用螺丝拧紧, 振动保护
环境特性 | 气候
最小工作温度 -25 °C
最大工作温度 85 °C
Additional condition temperature range depending on cable quality
Important installation notes
Note on strain relief Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties.
Note on bending radius Attention: Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces.

电缆
wire arrangement 白色, 紫色, (绿色, 黄色, 灰色, rosa, 红色, 黑色, braun, 蓝色, 绿色-黄色)
General data | Cable
电缆标识 362
电缆类型 2
电缆功能 混合物, 信号, Power
护套颜色 灰色
Type of Certificate cURus
Structure | Cable
Amount stranding 1
Stranding 2 wires 带 Filler twisted
Amount stranding (type 2) 1
Stranding (type 2) 9 wires 大约 绞合 twisted
Filler
wire arrangement 白色, 紫色, (绿色, 黄色, 灰色, rosa, 红色, 黑色, braun, 蓝色, 绿色-黄色)
Mechanical data | Cable
Cable weigth 115,5 g/m
材料护套 PUR
肖氏硬度 外壳 87 ± 5 Shore A
无成分(护套) 无铅, 无镉, 不含氟利昂, 不含硅
Outer-diameter (jacket) 8,1 mm
Tolerance outer diameter (sheath) ± 5 %
内部护套材料 PVC
颜色(内护套) 灰色
Material wire insulation PVC
Amount wires 8
Outer diameter insulation 1,3 mm
Outer diameter tolerance core insulation ± 5 %
Shore hardness wire insulation 43 ± 5 Shore D
Material properties wire insulation 良好的机械加工性能
Ingredient freeness wire insulation 无铅, 无镉, 不含氟利昂, 不含硅
Amount strands (wire) 19
Diameter of single wires 0,15 mm
Conductor crosssection (wire) 0,34 mm²
Material conductor wire 铜绞线,无遮蔽
Conductor type (wire) 5 级绞合线
Material wire insulation (Power) PVC
Outer diameter wire insulation (Power) 1,8 mm
Tolerance outer diameter wire insulation (Power) ±5 %
Shore hardness wire insulation (Power) 43±5 Shore D
Material properties wire insulation (Power) 良好的机械加工性能
Ingredient freeness wire insulation (Power) 无铅, 无镉, 不含氟利昂, 不含硅
电芯数量(电源) 3
Amount strands wire (Power) 24
Diameter of single wires (Power) 0,2 mm
Wire conductor cross section (Power) 0,75 mm²
Material conductor wire (Power) 铜绞线,无遮蔽
Conductor type wire (Power) 5 级绞合线
Electrical data | Cable
Max. rated voltage (conductor - conductor) 300 V
Max. rated voltage (conductor - ground) 300 V
电流承载能力(标准) 符合DIN VDE 0293标准
最小电流负荷能力电芯 4 A
Current carrying capacity min. wire (Power) 7,8 A
Electrical resistance line constant wire 57 Ω/km @ 20 °C
Electrical resistance coating wire (Power) 26 Ω/km @20 °C
交流耐受电压(电芯 - 电芯) 2 kV @ 60 s
工频耐受电压(电芯 - 护套) 2 kV @ 60 s
Temperature range | Cable
最小工作温度(固定) -30 °C
最大工作温度(固定) 80 °C
最小工作温度(移动) -5 °C
最大工作温度(移动) 70 °C
Resistances | Cable
耐燃性 UL 1581 § 1090 | IEC 60332-2-2 | UL 1581 § 1100 FT2
chemical resistance 顺利接受应用相关的测试
耐汽油性 顺利接受应用相关的测试
Oil resistance 顺利接受应用相关的测试 | DIN EN 60811-404
Installation | Cable
弯曲半径(固定型) 5 x Outer diameter
弯曲半径 (运动) 10 x Outer diameter
弯曲循环数 (拖链) 2 Mio. @ 25 °C
导线距离(拖链) 5 m @ 25 °C
行驶速度(拖链) 10 m/s @ 25 °C

ECLASS-6.0 27279218
ECLASS-7.0 27279218
ECLASS-8.0 27279218
ECLASS-9.0 27060311
ECLASS-10.1 27060311
ECLASS-11.1 27060311
ECLASS-12.0 27060311
ETIM-5.0 EC001855
EAN 4048879188296
EAN 4048879188296
包装单位 1
包装单位 1
海关税号 85444290
海关税号 85444290


与产品相关的文档:
  • 产品PDF
  • Construction files: STP 7000-23151_stp_x_f.zip (A)
  • Information: Certificate of conformity Murrelektronik GmbH 17-12-23_(1) RoHS REACh exception 6c_DoC_z_a.pdf (04)
  • Information: Certificate of conformity Murrelektronik GmbH 22-12-23_(6) California Prop65 Ni surface_DoC_z_a.pdf (01)
  • Information: Certificate of conformity Murrelektronik GmbH 13-12-23_(5) China RoHS 2 50EEP_DoC_z_a.pdf (01)
